​Thermal Tank

For hydrostatic testing when pipe samples are immersed in water with a precisely controlled temperature. It is also suitable for conditioning samples by immersion in a temperature-controlled environment.The hydrostatic bath is designed for testing polymer products by determining resistance at constant internal pressure in an aqueous medium at a constant temperature.

Standards: ISO 1167, ISO 10508, ASTM D1598, ASTM D1599

Features:

Material: The inner part is made of stainless steel .

High-Precision Temperature Control System: Utilizes a dual independent heating and circulation system with high heat exchange efficiency, with a pump flow rate of at least 4 m³/h to ensure uniform temperature distribution.

Excellent Thermal Insulation Properties: Even at water temperatures up to 95 °C, the outer cover remains at room temperature, enhancing safety and reducing energy consumption by over 70%.

Equipped with a Vapor Collection Device: Addresses the issue of vapor overflow from the bath.

Structural Mounting Frame: Provides excellent load-bearing capacity and anti-deformation capability.

Pneumatic Control for Lid Opening: The lid opens with pneumatic control.

Automatic Water Level Control: If the water level falls below a preset value, it automatically replenishes water to prevent excessive temperature fluctuations; this also prevents the heater from operating without water, significantly extending the heater's lifespan and safety.

High Cooling Efficiency: Utilizes an industrial chiller for cooling, which is environmentally friendly and efficient.

Multiple Outlet Options: Can be equipped with a water filling device for both large and small pipes.

Integrated water tank temperature control system, saving laboratory space and easy to operate.

Technical parameters:

Water temperature control range: 20°C~95°C.

Accuracy of water temperature control: ±0.1°C.

Uniformity of the bath temperature : ±1°C.

Fluctuation in water level during intelligent refilling: <0.1°C.

Material: Type 304 stainless steel.

Type of lid opening: pneumatic drive.

Supplement type water supply: automatically.

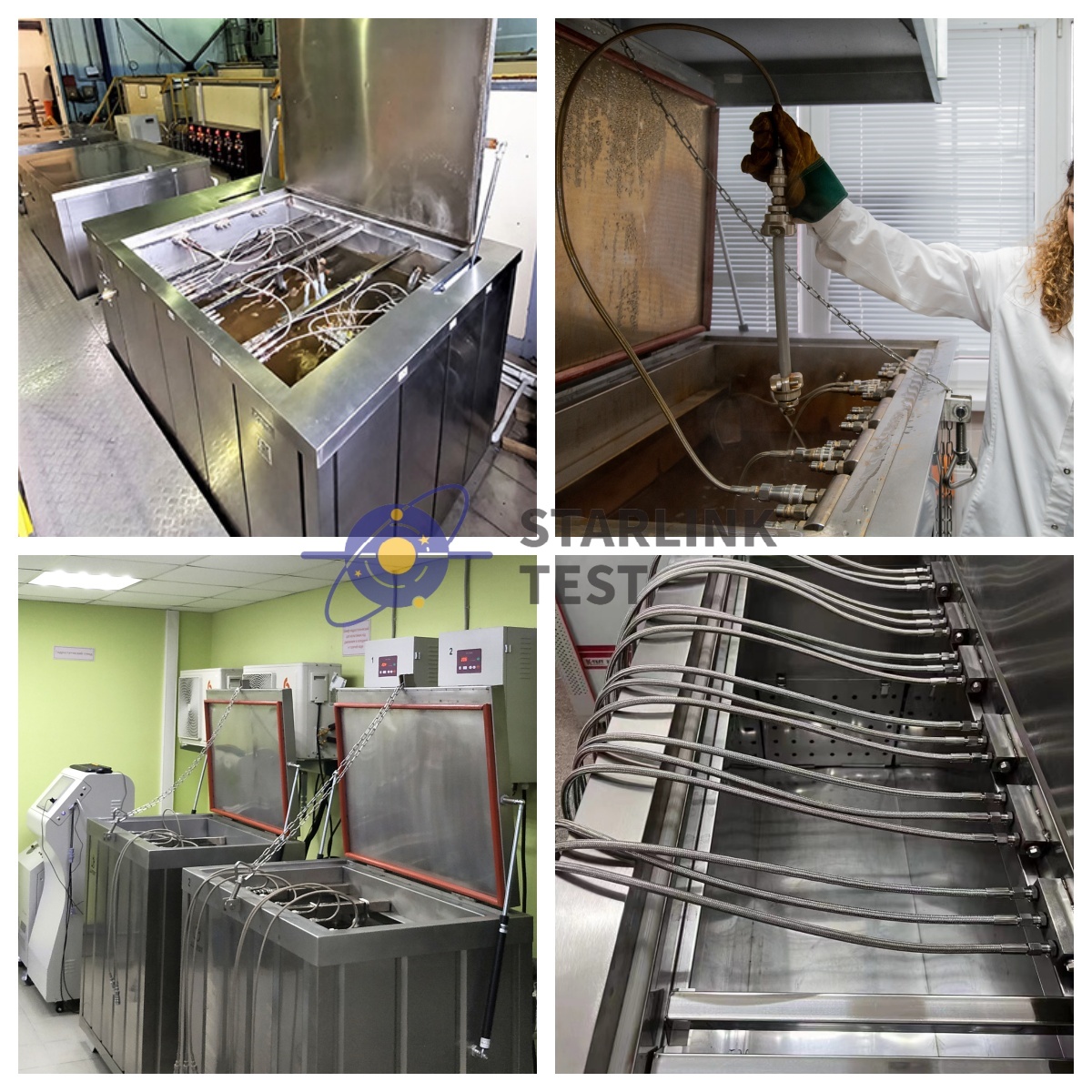

​Thermal Tank (图1)
