Universal Testing Machines

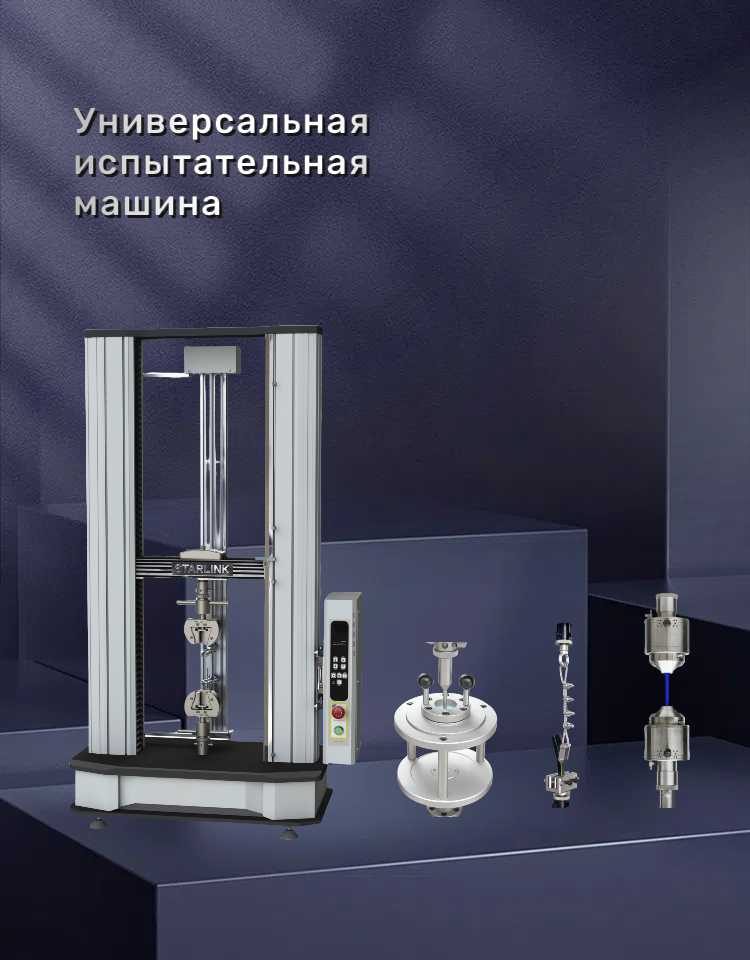

Universal Testing Machines (Electric Breaking Machines) of the SL-U50A/B Series

Designed to determine the mechanical properties of materials and structural elements, these machines are capable of testing products in stretching, compression, and bending modes under static loads up to 50 kN.

The power frame of the testing machine features a two-column design, ensuring stability and precision during testing procedures. The movement of the movable traverse is facilitated by precision ball screw gears, guaranteeing smooth and accurate motion for reliable test outcomes.

An advanced control system, fully digital and utilizing three closed-loop DSP + MCU, is employed for precise monitoring and measurement. This state-of-the-art system allows for the creation of custom test methods, tailored to specific test requirements.

Key Features:

  1. On-line Programming: Sample test parameters can be programmed on-line, offering flexibility and convenience for users.

  2. Pre-established Test Methods: These methods expedite the testing process, ensuring quick and efficient compliance with standards such as ASTM, ISO, DIN, EN, BS, among others.

  3. Customizable Test Reports: Operators can configure the test report according to the standards' requirements, allowing for clear and standardized documentation of results.

  4. Versatile Curve Types: The system supports various curve types, including Load-displacement, time-loads, time-displacements, stress-strain, time-stress, time-strain, modulus-load, modulus-strain, and load-strain. It also allows for the simultaneous display of multiple images, providing comprehensive data analysis capabilities.

Technical parameters:

Modification...................................SL-U50A/B

Maximum Load Options..............100N/200N/500N/1KN/2KN/3KN/5KN/10KN/20KN/30KN/50KN

ISO Accuracy 7500........................Accuracy class 0.5

Force Measurement Range............0.4% - 100% Full Scale (FS)

Load Display Resolution.....* A- 1/500,000 of the maximum load

  • B- 1/50,000 of the maximum load

Strain Measurement Range...........0.2% - 100% Full Scale (FS)

Force Control Speed Adjustment Range....0.01% - 5% Full Scale per Second (FS/S)

Movement Display Resolution............0.01 mm

Active Gripper Movement Speed Range...0.001 mm/min to 500 mm/min

Relative Error in Speed Setting for Active Gripper Movement.....±0.3%

Maximum Traverse Stroke (without grips)....960 mm

Distance between Columns............440 mm

Overall Dimensions (LxWxH).......950 mm x 550 mm x 1960 mm

Electric Power Supply Requirements......220 V ±10%, 900 W

Weight................................................................................................520 kg

Key Component Options:

  • A - Imported gearbox, servo motor, and sensor for enhanced performance and reliability.
  • B - Chinese gearbox, servo motor, and sensor, offering a cost-effective solution while maintaining quality standards.
