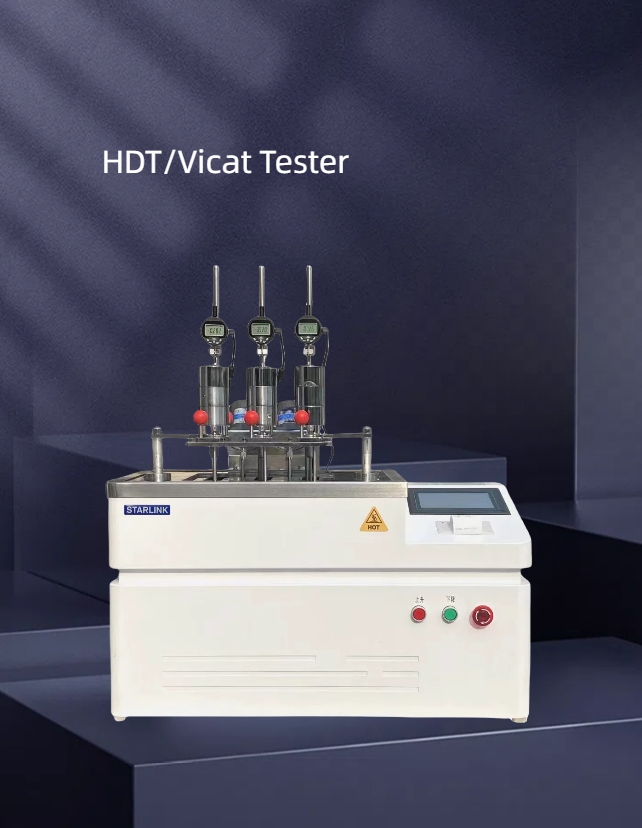

HDT Test Definition:The HDT (Heat Deflection Temperature) test determines the temperature at which a standard test specimen exhibits a specific deflection when subjected to a bending stress. This test is designed to produce one of the nominal surface stresses as defined by international standards. The HDT test plays a crucial role in both quality control and research related to plastics.

VICAT Test Definition:The VICAT test measures the temperature at which a standard indenter penetrates 1mm into the surface of a test specimen under an applied load. This test is used to differentiate between various types of thermoplastic materials based on their softening characteristics.

The test stand for this model is automatically adjustable.

Relevant Standards:

• ISO 75
• ISO 306
• ASTM D1525

• ASTM D648 and other equivalent standards.

Parameters：

• Number of Stations: Available in configurations of 2, 3, 4, or 6 stations for simultaneous testing.
• Temperature Measuring Point: A single measuring point is utilized for accurate temperature monitoring.
• Control Mode: Operated via a touch screen interface for intuitive control and data input.
• Temperature Range: The device is capable of heating from room temperature (RT) up to 300°C.
• Temperature Ramps: Offers two preset ramp rates:
• 50°C/h with an accuracy of ±0.5°C every 6 minutes.
• 120°C/h with an accuracy of ±1.0°C every 6 minutes.
• Additionally, any other rate between 3-120°C/h can be selected.
• Deformation Range: Capable of measuring deflections from -1.00mm to +9.00mm.
• Deformation Measuring Instrument: Incorporates a digital gauge with a communication interface for precision measurement.
• Test Capability: Simultaneously conducts HDT and VICAT tests, efficiently providing both results at the same time.
• Control Way: Employs a touch screen control that includes a USB port for data acquisition to a PC.

• Kinds of Graph: Displays deflection or penetration curves against time or temperature for comprehensive analysis.
